Power Button for Rpi 4

So simple, a long-held wish fulfilled

I’ve been wanting to add a soft shutdown button to my Raspberry Pi. Having to log in via SSH and then use sudo shutdown -h every time is cumbersome. The included power cord with a switch only allows for hard shutdown and doesn’t protect the memory card from file system corruption.

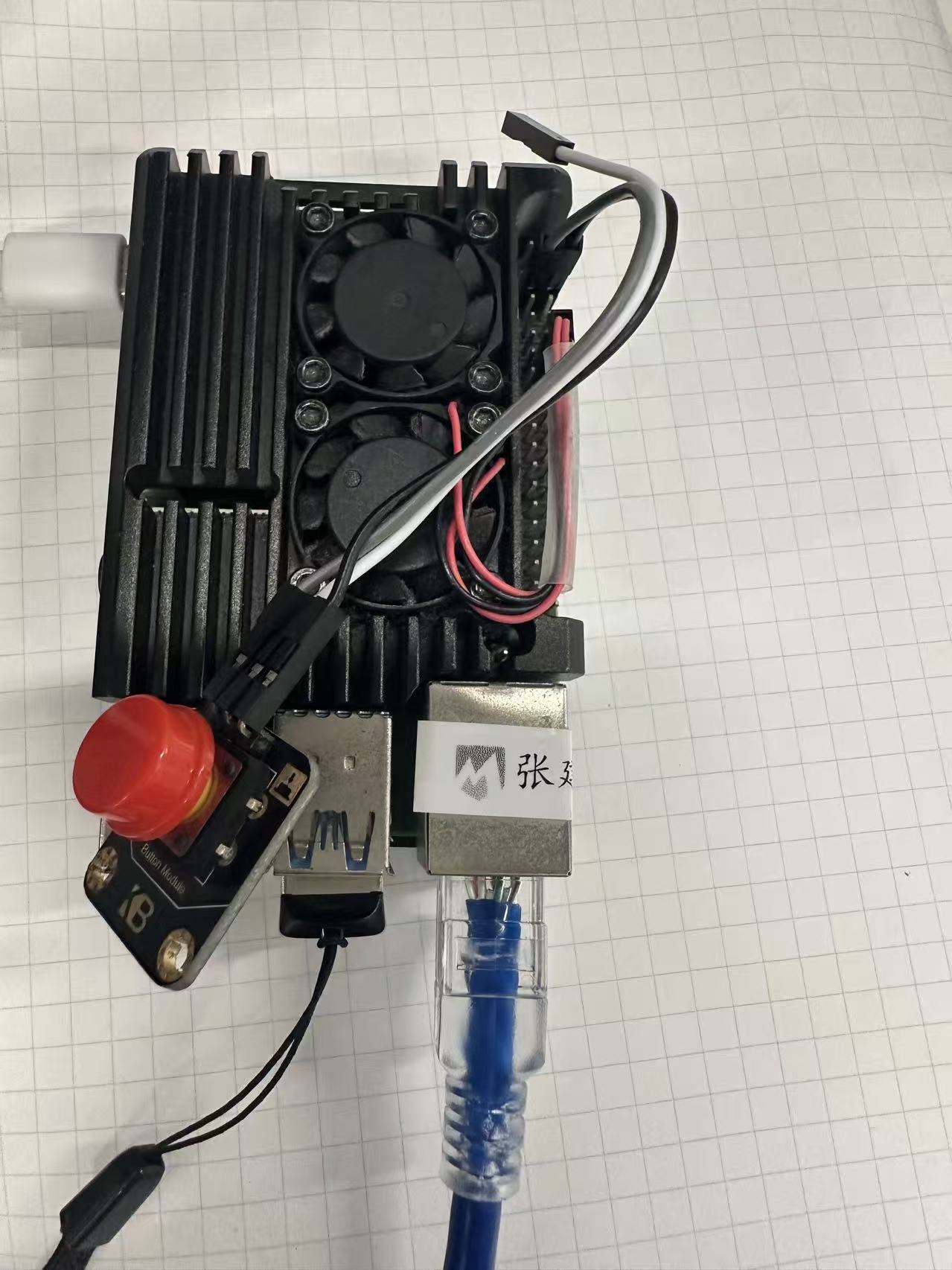

raspberry pi with power button

I happened to have a button from a children’s DIY kit on hand, and wondering if I could use it, I asked Gemini. I was surprised by how good the Raspberry Pi ecosystem is now. Gemini immediately gave me three solutions.

Three solutions

There are three main ways to add a physical button to a Raspberry Pi to achieve a “soft shutdown” (safe shutdown). The simplest and recommended method is to use the system’s built-in gpio-shutdown overlay, which requires no scripting.

Solution Difficulty Hardware Requirements Pros Cons
gpio-shutdown Low Tactile button, Jumper wires Native support; zero CPU usage; supports both power-on and power-off. Default pin (GPIO 3) conflicts with I2C bus.
RPi 5 Power Button None None Most stable official method; uses dedicated PMIC; no extra hardware needed. Limited to Raspberry Pi 5 only.
Python Script Medium Tactile button, Jumper wires Highly customizable (e.g., distinguishing long-press vs. short-press). Requires background process; cannot wake the Pi once it’s powered off.

My choice

Solution 3 offers more flexibility, but it comes at the cost of performance. Since I don’t currently have many customization needs, I’ve chosen Solution 1.

  • Concret steps:

    Modify the configuration file (Recommended, simplest) This method utilizes a built-in feature of the Raspberry Pi kernel. Only one file needs to be modified and two wires connected.

    Wiring: Connect a push button to GPIO 3 (physical pin 5) and GND (physical pin 6) on the Raspberry Pi.

    Configure the software:

    In the terminal, type:
    sudo nano /boot/config.txt
    (if it’s a new system, it might be /boot/firmware/config.txt).

    Add the line
    dtoverlay=gpio-shutdown
    to the end of the file.

    Save and exit (Ctrl+O, Enter, Ctrl+X), then reboot:
    sudo reboot.

Usage:

When plugged the button, write the config.txt, reboot and all is set.

  • Shutdown: Press the button while the Raspberry Pi is powered on; the system will perform a safe shutdown.

  • Power On: With the device powered off (but not unplugged), pressing the same button once will restart the system.

Note: GPIO 3 is also used for I2C by default. If you must use I2C, you can change the power-off pin parameters (e.g., dtoverlay=gpio-shutdown, gpio_pin=17), but non-GPIO 3 pins typically do not support one-button power-on.

I didn’t turn on I2C now, though I have a touchscreen which was on I2C.

Check if worked as expected

Verify if a “software shutdown” was performed

Because SSH disconnection is too rapid, I’m not sure whether pi did a soft shutdown. So again I asked Gemini, How can I confirm it’s not a “forced power-off”? It told me using the following methods:

  • Check the system log: After rebooting, run journalctl -b -1 -u systemd-logind. If you see “System is powering down…” or a record processing KEY_POWER, it indicates a normal shutdown triggered by this method.

  • LED status: Observe the onboard green LED at the last moment of shutdown. In a software shutdown, it will typically flash regularly 10 times before turning off; in a forced power-off, the green light will disappear instantly.

Yep, it worked, now I can power off the raspberry pi without ssh into it anymore!
